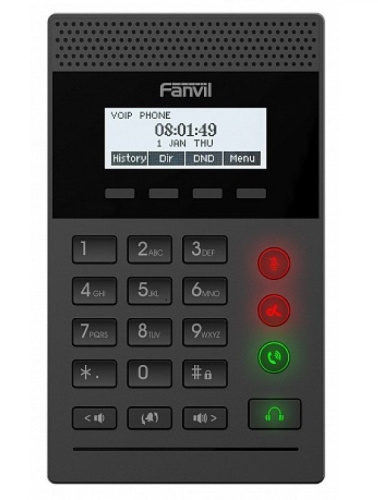

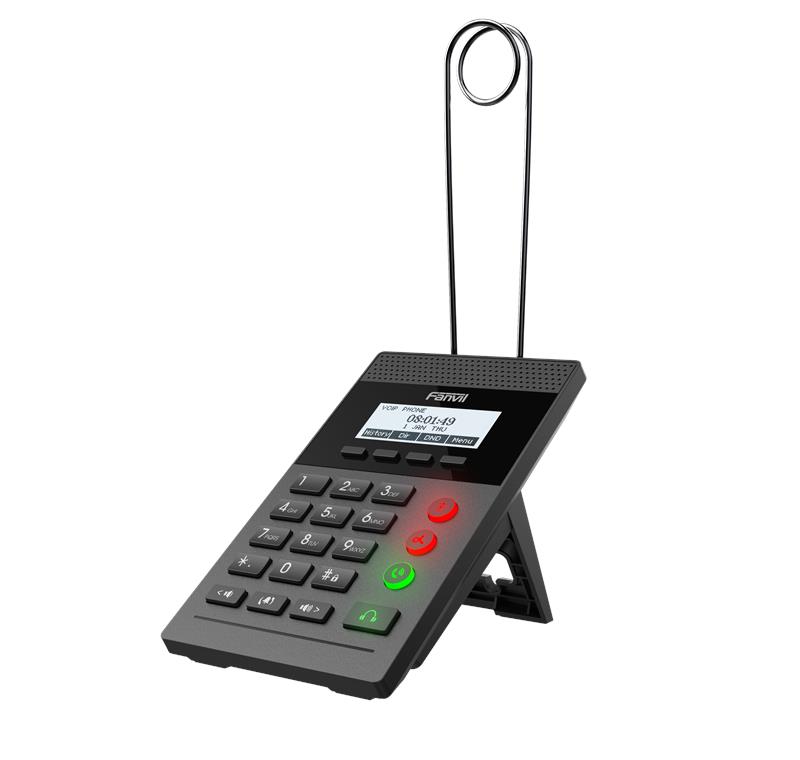

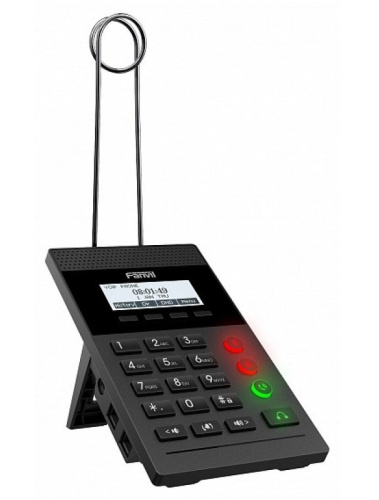

SIP-телефон Fanvil (X2CP)

Generic

2 SIP Lines

HD Voice

PoE Enabled (X2CP/X2P)

Headset mode

Optional External Power Supply (X2CP and X2P Optional)

Phone Features

Local Phonebook (500 entries)

Remote Phonebook (XML/LDAP, 500 entries)

Call logs (In/out/missed, 600 entries)

Black/White List Call Filtering

Screen saver(Only X2P)

Voice Message Waiting Indication (VMWI)

Programmable Soft keys

Network Time Synchronization

Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)

Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

Support Recording (Through Server Recording )

Action URL / Active URI

uaCSTA

Call Features

Call out / Answer / Reject

Mute / Unmute (Microphone)

Call Hold / Resume

Call Waiting

Intercom

Caller ID Display

Anonymous Call (Hide Caller ID)

Call Forwarding (Always/Busy/No Answer)

Call Transfer (Attended/Unattended)

Call Parking/Pick-up (Depending on server)

Redial

Do-Not-Disturb

Auto-Answering

Voice Message (On server)

3-way Conference

Hot Line

Hot desking

Audio

Wideband ADC/DAC 16KHz Sampling

Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB

Wideband Codec: G.722

Full-duplex Acoustic Echo Canceller (AEC)

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)

Packet Loss Concealment (PLC)

Dynamic Adaptive Jitter Buffer up to 300ms

DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass

IP Configuration: Static / DHCP / PPPoE

Network Access Control: 802.1x

VPN: L2TP / OpenVPN

VLAN

LLDP

QoS

RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)

Protocols

SIP2.0 over UDP/TCP/TLS

RTP/RTCP/SRTP

STUN

DHCP

LLDP

PPPoE

802.1x

L2TP

OpenVPN

SNTP

FTP/TFTP

HTTP/HTTPS

TR-069

Deployment & Maintenance

Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

Web Management Portal

Web-based Packet Dump

Configuration Export / Import

Phonebook Import/Export

Firmware Upgrade

Syslog

Physical Specifications

LCD x1:

X2C/X2CP: 128x48 dot-matrix backlit display

X2P: 2.8 inch (320x240) color-screen

Keypad: 23 keys, including

4 Soft-keys

4 LED Function keys (Mute, Hold, Auto Answer, Headset )

12 Standard Phone Digits keys

2 Volume Control keys, Lower/Increase(Left/Right)

1 Volume Select key, (Page Down)

1.5M CAT5 Ethernet Cable x1

Earphone bracket x1

Back Rack x1

3.5mm Port x2: Headset x1, Foot pedal x1

RJ9 Port x2: Headset x1, Monitor earphone x1

RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

DC Power Input: 5V/0.6A

Power Consumption: Idle 0.9~1.6W, Peak 1.6~2.5W

Working Temperature: 0~45??

Working Humidity: 10~95%

Installation: Desktop Stand

Color: Black

Device Dimensions

Do not contain Earphone bracket: 100.8x147x107.4mm

Contain Earphone bracket: 100.8x155.4x246mm

Gift Box Dimensions:

X2C/X2CP: 200x175x52mm

X2P: 196.98x109.98x65mm

Outer CTN Dimensions:

X2C/X2CP: 555x370x220mm (20 PCS)

X2P: 455x340x220mm (20 PCS)
